Tarinsert typ TLC
Zálisek typ Tarinsert TLC
Materiál: Mosaz
Povrchová úprava: bez PÚ
Montáž: Montážním klíčem SER36M nebo SER36A

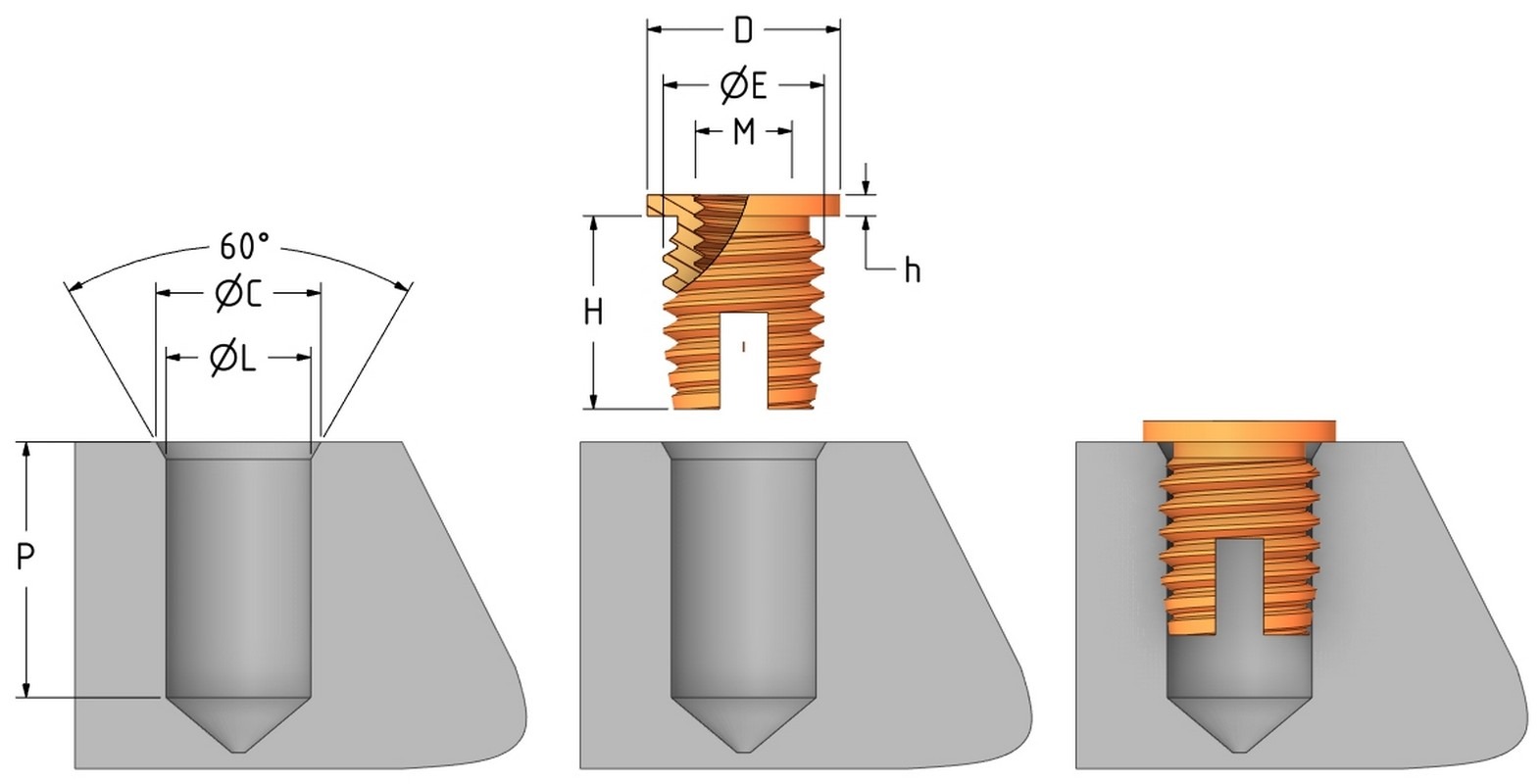

| Produkt | Závit M | E | H | P | LØ | CØ | D | h ±0.05 |
|---|---|---|---|---|---|---|---|---|
| 36/TLC2.5 | M2,5 | 4.5 | 6.0 | 8.0 | 4.1 | 4.5 | 6.0 | 0.6 |
| 36/TLC3 | M3,5 | 5.0 | 6.0 | 8.0 | 4.7 | 5.0 | 6.5 | 0.6 |
| 36/TLC3,5 | M3,5 | 6.0 | 8.0 | 10.0 | 5.5 | 6.0 | 7.5 | 0.75 |
| 36/TLC4 | M4 | 6.5 | 8.0 | 10.0 | 6.0 | 6.5 | 8.0 | 0.9 |
| 36/TLC5 | M5 | 8.0 | 10.0 | 13.0 | 7.4 | 8.0 | 9.5 | 1.0 |
| 36/TLC6 | M6 | 10.0 | 14.0 | 17.0 | 9.0 | 10.0 | 12.0 | 1.3 |
| 36/TLC8 | M8 | 12.0 | 15.0 | 18.0 | 11.0 | 12.0 | 14.0 | 1.3 |
| 36/TLC10 | M10 | 14.0 | 18.0 | 22.0 | 13.0 | 14.0 | 16.0 | 1.6 |
| 36/TLC12 | M12 | 16.0 | 22.0 | 26.0 | 15.0 | 16.0 | 18.0 | 1.6 |
