Tarinsert typ TAC
Zálisek typ Tarinsert TAC
Materiál: Cementovaná ocel
Povrchová úprava: pozinkovaná
Montáž: Montážním klíčem SER36M nebo SER36A

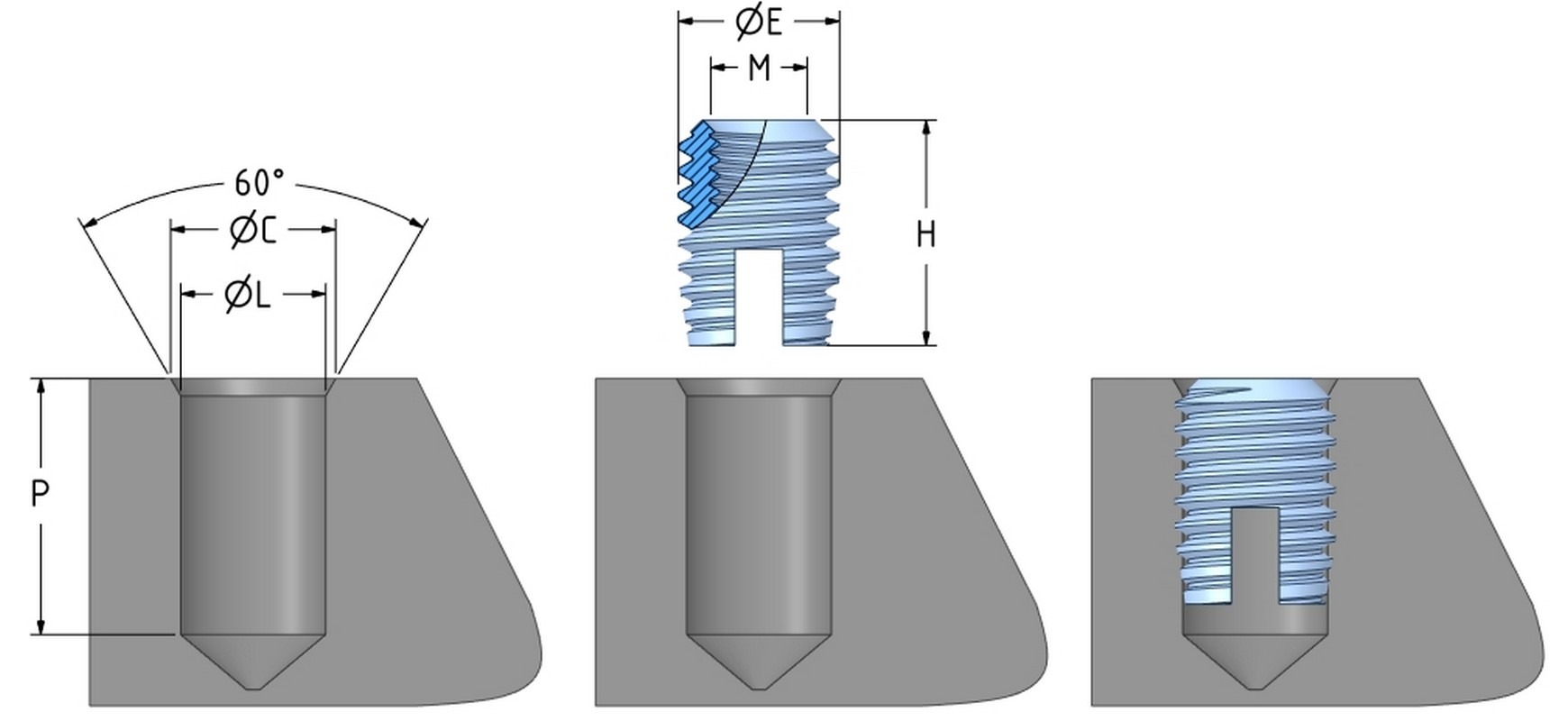

| Produkt | Závit M | E | H | P | ⌀ L | ⌀C |
|---|---|---|---|---|---|---|
| 36/T2.5AC | M2.5 | 4 | 4 | 5 | 3.7 | 4 |
| 36/TL2.5AC | M2.5 | 4.5 | 6 | 8 | 4.1 | 4.5 |
| 36/T3AC | M3 | 5 | 5 | 7 | 4.7 | 5 |
| 36/TL3AC | M3 | 5 | 6 | 8 | 4.7 | 5 |
| 36/T3.5AC | M3.5 | 6 | 6 | 8 | 5.5 | 6 |
| 36/T4AC | M4 | 6.5 | 7 | 9 | 6.0 | 6,5 |
| 36/TL4AC | M4 | 6.5 | 8 | 10 | 6 | 6.5 |
| 36/T5AC | M5 | 8 | 8 | 10 | 7.4 | 8 |
| 36/TL5AC | M5 | 8 | 10 | 13 | 7.4 | 8 |
| 36/T6AC | M6 | 9 | 10 | 12 | 8.4 | 9 |
| 36/TL6AC | M6 | 10 | 14 | 17 | 9 | 10 |
| 36/T8AC | M8 | 12 | 13 | 16 | 11.0 | 12 |
| 36/TL8AC | M8 | 12 | 15 | 18 | 11 | 12 |
| 36/T10AC | M10 | 14 | 16 | 19 | 13.0 | 14 |
| 36/TL10AC | M10 | 14 | 18 | 22 | 13 | 14 |
| 36/T12AC | M12 | 16.0 | 22.0 | 26.0 | 15.0 | 16.0 |
